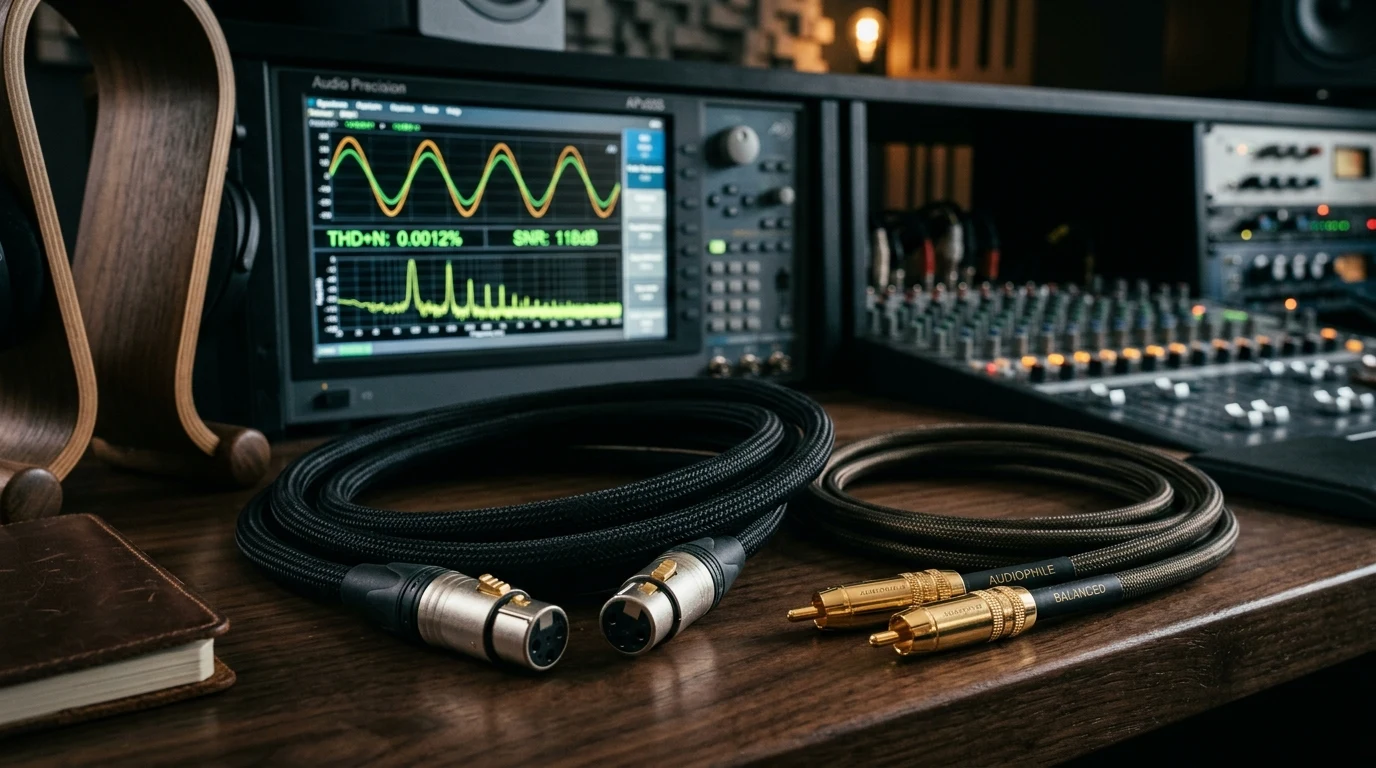

What Is the Primary Difference Between Balanced XLR and Single-Ended RCA?

The primary difference between balanced XLR and single-ended RCA is that balanced XLR transmits audio over two identical out-of-phase differential conductors with a dedicated ground shield, completely canceling electromagnetic interference and eliminating ground loops via Common-Mode Rejection Ratio (CMRR), whereas RCA transmits over a single conductor that relies on the noisy shield as the audio return path.

In high-end residential audio systems, dedicated home theaters, and professional recording studios, preserving pristine dynamic range and an ultra-quiet noise floor is the hallmark of master-level engineering. However, as custom audio-video racks become packed with high-efficiency Class D amplifiers, uncompressed video processors, network switches, and automated lighting controllers, the electromagnetic environment in modern residences has become aggressively hostile.

Audiophiles and home theater enthusiasts frequently battle the ubiquitous “60 Hz ground hum” or high-frequency buzzing emitted through subwoofers and high-sensitivity horn compression drivers. While snake-oil cable marketing promises miraculous sonic transformations through exotic crystalline copper, the true solution to signal corruption is grounded in fundamental electrical physics: the mathematical supremacy of balanced differential transmission.

Electrical Engineering Matrix: Balanced XLR vs Single-Ended RCA

Analyzing the electrical properties, shielding mechanics, and signal transmission parameters across audio interconnect standards:

The Mathematical Physics of Common-Mode Rejection (CMRR)

The defining technological advantage of balanced transmission is not the three-pin XLR plug itself, but the mathematical behavior of the differential receiver stage:

1. Differential Signal Generation: The source component (preamp, DAC, or mixing console) outputs the audio signal across two matched impedance conductors. Conductor A (Hot / Pin 2) carries the normal audio waveform:
   $$V_{ ext{hot}}(t) = +V_{ ext{audio}}(t)$$
   Conductor B (Cold / Pin 3) carries the identical audio signal inverted by exactly 180 degrees:
   $$V_{ ext{cold}}(t) = -V_{ ext{audio}}(t)$$
2. Electromagnetic Noise Ingress: As the twisted pair travels through the room past power cables and transformers, external magnetic fields induce an identical unwanted noise voltage ($V_{ ext{noise}}$) into both conductors because the two wires are physically intertwined:
   $$V_{ ext{hot, received}}(t) = +V_{ ext{audio}}(t) + V_{ ext{noise}}(t)$$
   $$V_{ ext{cold, received}}(t) = -V_{ ext{audio}}(t) + V_{ ext{noise}}(t)$$
3. The Differential Subtraction Stage: At the destination amplifier, the receiving differential stage subtracts the cold signal from the hot signal:
   $$V_{ ext{out}} = V_{ ext{hot, received}} – V_{ ext{cold, received}}$$
   $$V_{ ext{out}} = \left( +V_{ ext{audio}} + V_{ ext{noise}}
   ight) – \left( -V_{ ext{audio}} + V_{ ext{noise}}
   ight)$$
   $$V_{ ext{out}} = +V_{ ext{audio}} + V_{ ext{noise}} + V_{ ext{audio}} – V_{ ext{noise}}$$
   $$V_{ ext{out}} = 2 \cdot V_{ ext{audio}}(t) + 0$$

The mathematical result is extraordinary: the desired audio signal is amplified by a factor of two (+6 dB of clean voltage gain), while the induced common-mode noise ($V_{ ext{noise}}$) subtracts to absolute mathematical zero. A high-quality professional differential amplifier delivers a Common-Mode Rejection Ratio (CMRR) of 80 to 100 dB, reducing induced interference by a factor of 10,000 to 100,000.

Ground Loops Explained: The Fatal Flaw of RCA Interconnects

In single-ended RCA connections, the outer metal sleeve performs a dual role: it acts as the 0V reference for the audio signal, and it mechanically connects the chassis grounds of the two audio components together. This dual-use topology is the root cause of 99% of all audio hum issues:

• Ground Voltage Potential Differences: In a modern residence, electrical code mandates that equipment safety grounds tie back to the main electrical service panel. Because of tiny resistance variations across branch circuit copper wires and uneven load draws from refrigerators, air conditioners, and pool pumps, the safety ground at Wall Outlet A is rarely at the identical voltage potential as Wall Outlet B (often differing by 5 to 50 millivolts AC).
• The Circulating Loop Current: When you connect an RCA cable between a preamplifier plugged into Outlet A and a subwoofer plugged into Outlet B, a closed electrical loop is formed. AC current flows along the RCA cable’s outer copper shield to equalize the ground potential between the two chassis.
• Audible Induction: Because the RCA shield is also the audio signal return path, Ohm’s Law dictates that this circulating ground current ($I_{ ext{ground}} imes R_{ ext{shield}}$) generates an unwanted AC voltage drop directly in the audio path. This voltage drop is amplified by your power amp, producing the dreaded, infuriating 60 Hz ground loop hum.
• The Balanced XLR Elimination: In a properly engineered balanced system, Pin 1 (Chassis Shield) carries zero audio return signal; it connects exclusively to the metal chassis. Circulating ground currents travel harmlessly through the outer chassis frame without ever contaminating the isolated differential audio conductors on Pins 2 and 3.

The Infamous “Pin 1 Problem”: How Bad Gear Violates AES48

Not all audio equipment branded with XLR jacks is engineered correctly. In 1995, audio scientist Neil Muncy presented a legendary Audio Engineering Society (AES) paper exposing the “Pin 1 Problem”—a widespread manufacturing defect where audio engineers fail to follow electromagnetic compatibility (EMC) principles:

• The Correct Implementation (AES48 Standard): Pin 1 of the XLR receptacle must be bonded directly to the metal chassis enclosure at the point of entry with the shortest possible zero-impedance copper strap. Any RF interference picked up by the cable shield is immediately shunted to the chassis exterior and dissipated through safety ground.
• The Defective Implementation: In cheaply manufactured or poorly engineered audio components, manufacturers route XLR Pin 1 via a thin circuit board trace directly to the analog signal reference ground (the audio PCB 0V plane). When RFI or ground currents hit Pin 1, they dump high-frequency hash directly into the sensitive input stage of the operational amplifier, generating audible buzz and RF demodulation despite using balanced cables.
• Verification Test: High-end audio systems engineers test equipment using a multimeter: check resistance between XLR Pin 1 and the metal chassis screw. If it does not read a dead short (<0.1 Ohm) with zero continuity to audio circuit ground, the component suffers from the Pin 1 problem.

Cable Capacitance Math: Why RCA Destroys Long-Distance Subwoofer Runs

Another physical limitation of single-ended RCA cables is cable capacitance, which dictates the maximum permissible length before audible high-frequency rolloff occurs:

• The Low-Pass RC Filter Formula: Every audio interconnect exhibits capacitance ($C$) between its signal conductor and its shield, typically 30 to 50 picofarads per foot (pF/ft). Combined with the output impedance ($R_{ ext{out}}$) of the source component, this capacitance forms a passive first-order RC low-pass filter with a cutoff frequency ($f_c$) defined as:
  $$f_c = rac{1}{2 \pi \cdot R_{ ext{out}} \cdot C_{ ext{total}}}$$
• The RCA Scenario (50-Foot Run): A typical tube preamplifier or vintage AV receiver with a high 1,000-Ohm output impedance driving a 50-foot RCA cable (40 pF/ft = 2,000 pF total capacitance) creates a cutoff frequency:
  $$f_c = rac{1}{2 \pi imes 1,000 imes (2,000 imes 10^{-12})} pprox 79.5 ext{ kHz}$$
  While 79.5 kHz seems beyond human hearing, the phase shift associated with a first-order filter begins a full decade earlier at approximately 8 kHz, causing audible phase smearing, blunted transient attack, and loss of treble air.
• The Balanced XLR Advantage: Balanced line drivers typically operate at very low output impedances (typically 50 to 100 Ohms) and differential signaling negates the parasitic ground capacitance. A balanced XLR line can easily traverse 200 to 300 feet without measurable high-frequency loss or audible degradation, making XLR mandatory for long subwoofer runs and central equipment racks.

System Architecture Blueprint: Best Practices for High-End AV Integration

To eliminate noise, maximize dynamic range, and build an unassailable high-performance audio environment, adhere to these professional integration rules:

1. Fully Differential Internal Topology: Ensure your source DACs, preamplifiers, and power amplifiers are true fully balanced differential designs (featuring dual matched amplifier circuits per channel) rather than single-ended circuits with an op-amp XLR conversion buffer tacked onto the back panel. True differential architecture cuts internal harmonic distortion by canceling even-order harmonics ($HD_2, HD_4$).
2. Star-Ground Electrical Distribution: Plug all audio components sharing interconnected analog signal lines into a single dedicated branch circuit or an Online Double-Conversion Isolated UPS. This prevents inter-outlet ground potential differences from forming loop paths.
3. Subwoofer Isolation: Subwoofers located across the room from the main equipment rack are the primary victims of ground loop hum. Always run balanced XLR cables to active subwoofers. If your subwoofer only features RCA inputs, install a studio-grade passive isolation transformer (such as a Jensen Iso-Max CI-2RR) to break the electrical ground loop magnetically.

For companion acoustic and power infrastructure evaluations, study our acoustic analysis on Acoustic Room Treatment: RT60 Decay & SBIR Room Math, and review our clean power engineering guide on Online Double-Conversion UPS vs Line-Interactive AV.
